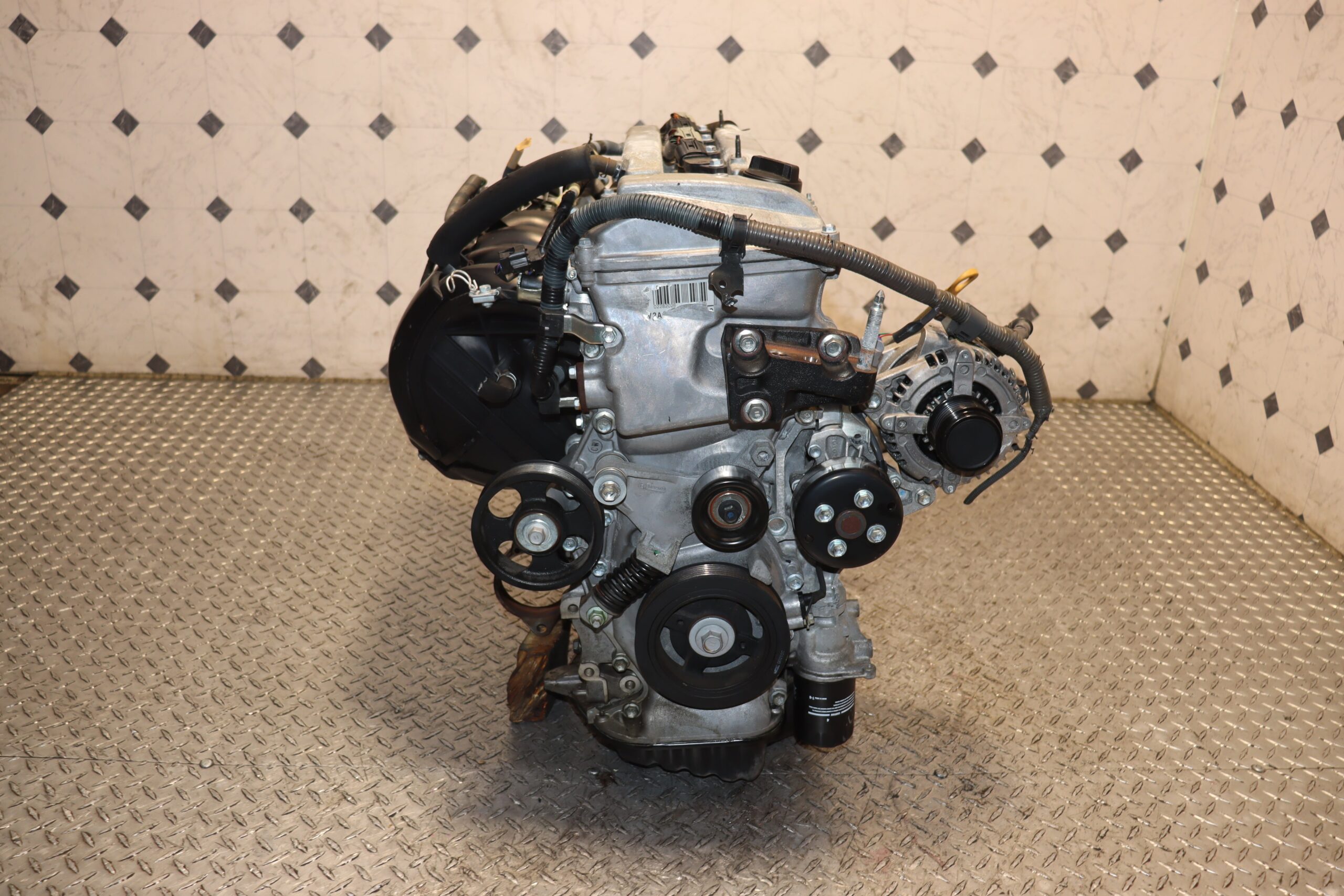

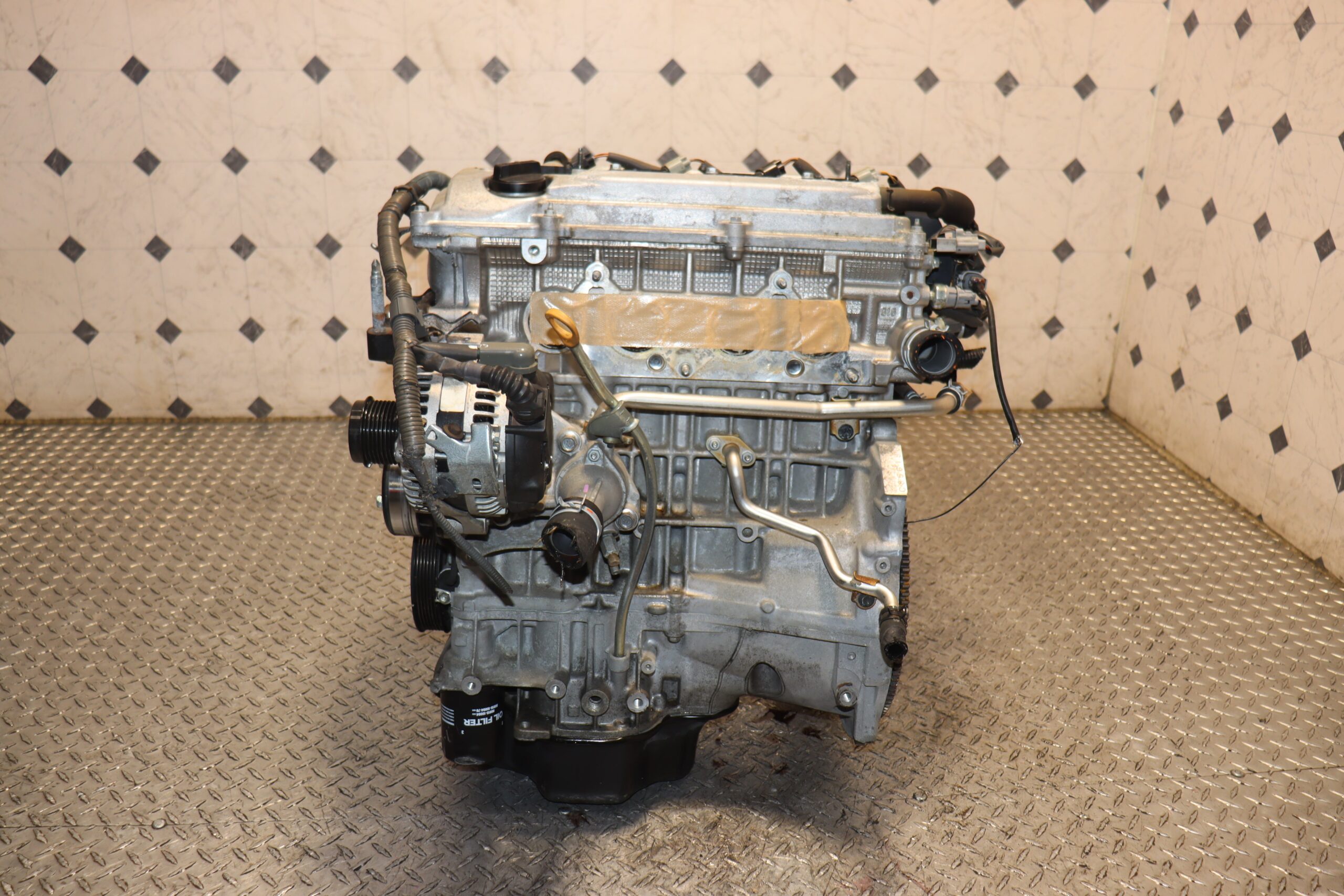

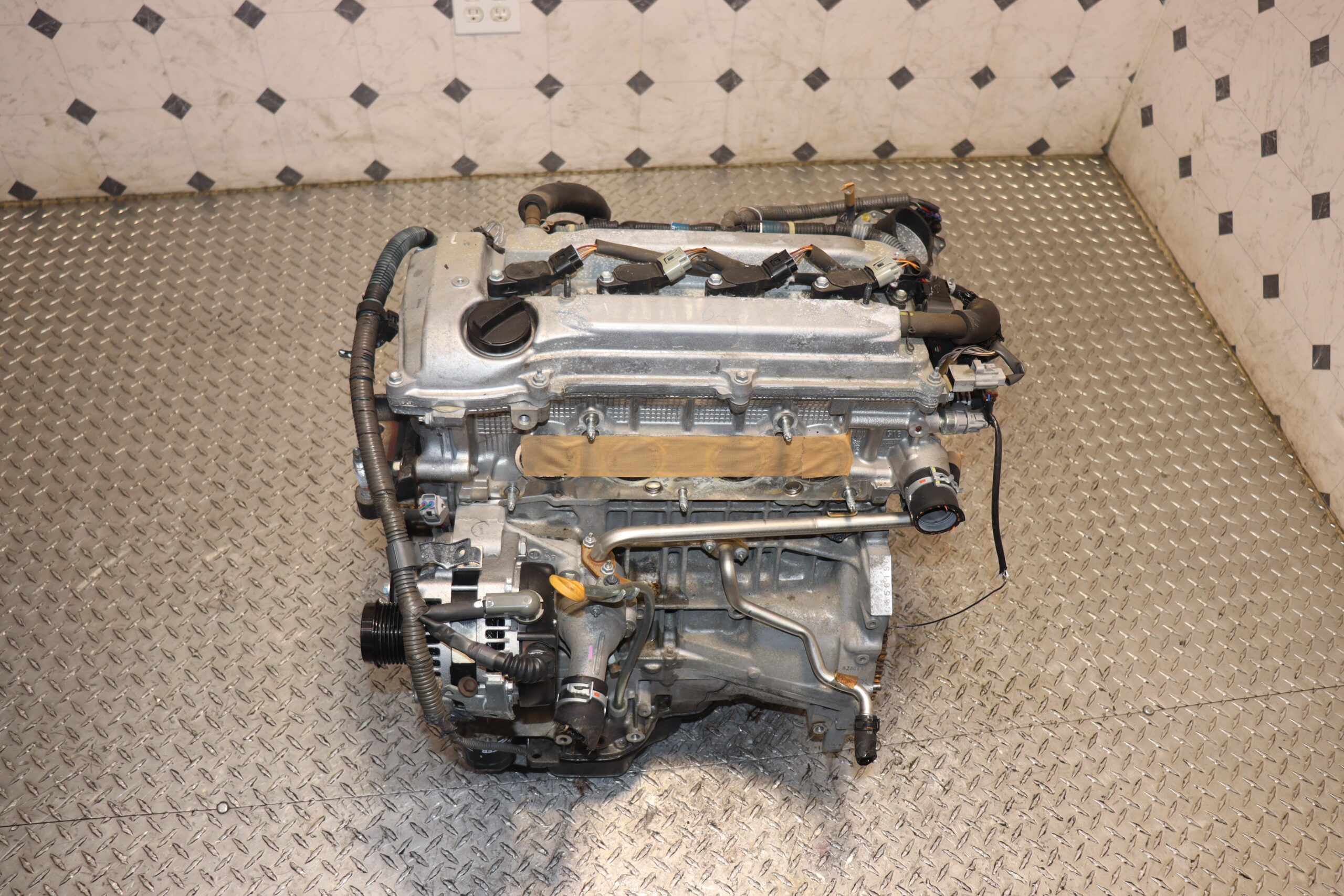

2009 2010 2011 2012 2013 Toyota Matrix 2.4L DOHC VVTi Engine JDM 2AZ-FE

Description

Vehicle Specifications

• Engine Code: 2AZ-FE

• Displacement: 2.4 Liter (2,362cc)

• Configuration: Inline 4-Cylinder

• Valvetrain: DOHC 16-Valve with VVT-i

Vehicle Fitments

• 2009-2013 Toyota Matrix (E140 Chassis)

• Trim Compatibility: Fits S and XRS trims equipped with the 2.4L engine.

• Note: This engine is for the 2.4L models only; it will not replace the 1.8L (2ZR-FE) engine.

Included Parts

• Complete Engine Long Block (Cylinder Head & Engine Block)

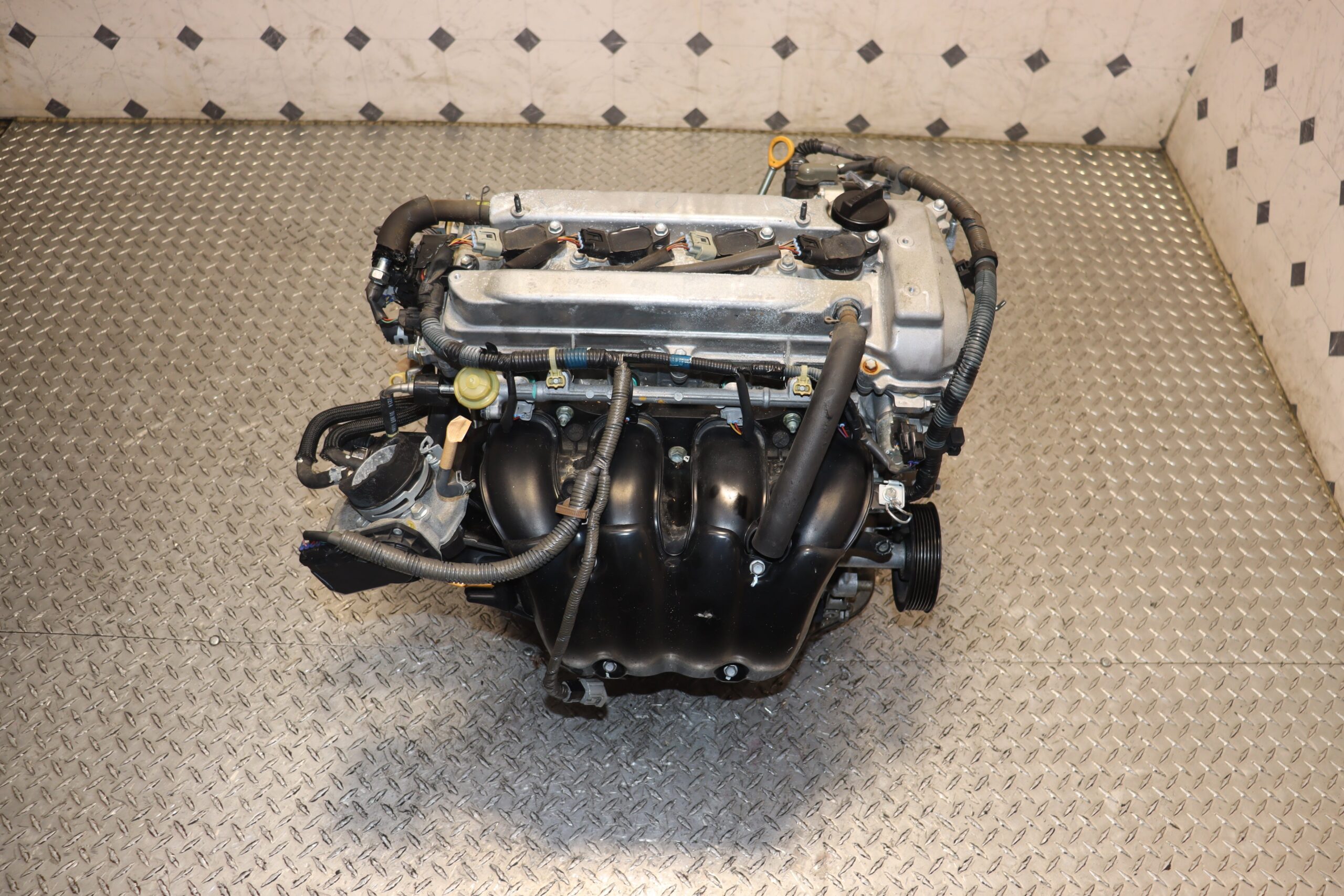

• Intake Manifold & Throttle Body

• Fuel Rail & Injectors

• Alternator, AC Compressor, & Power Steering Pump (Bonus items)

• Coil Packs & Engine Sensors (As pictured)

• Water Pump & Oil Pan

Installation & Notes

• USDM Swap: To ensure 100% emissions and ECU compatibility, it is highly recommended to transfer your original USDM intake & exhaust manifolds, coil packs, spark plugs, injectors, wiring harness, sensors to this JDM block.

• Preventative Maintenance: We suggest installing a new water pump, thermostat, and valve cover gasket before installation.

• Oil: Use high-quality 5W-20 or 5W-30 motor oil as specified for your vehicle year.

• Warranty: Includes a 90-day startup warranty on internal moving parts.
