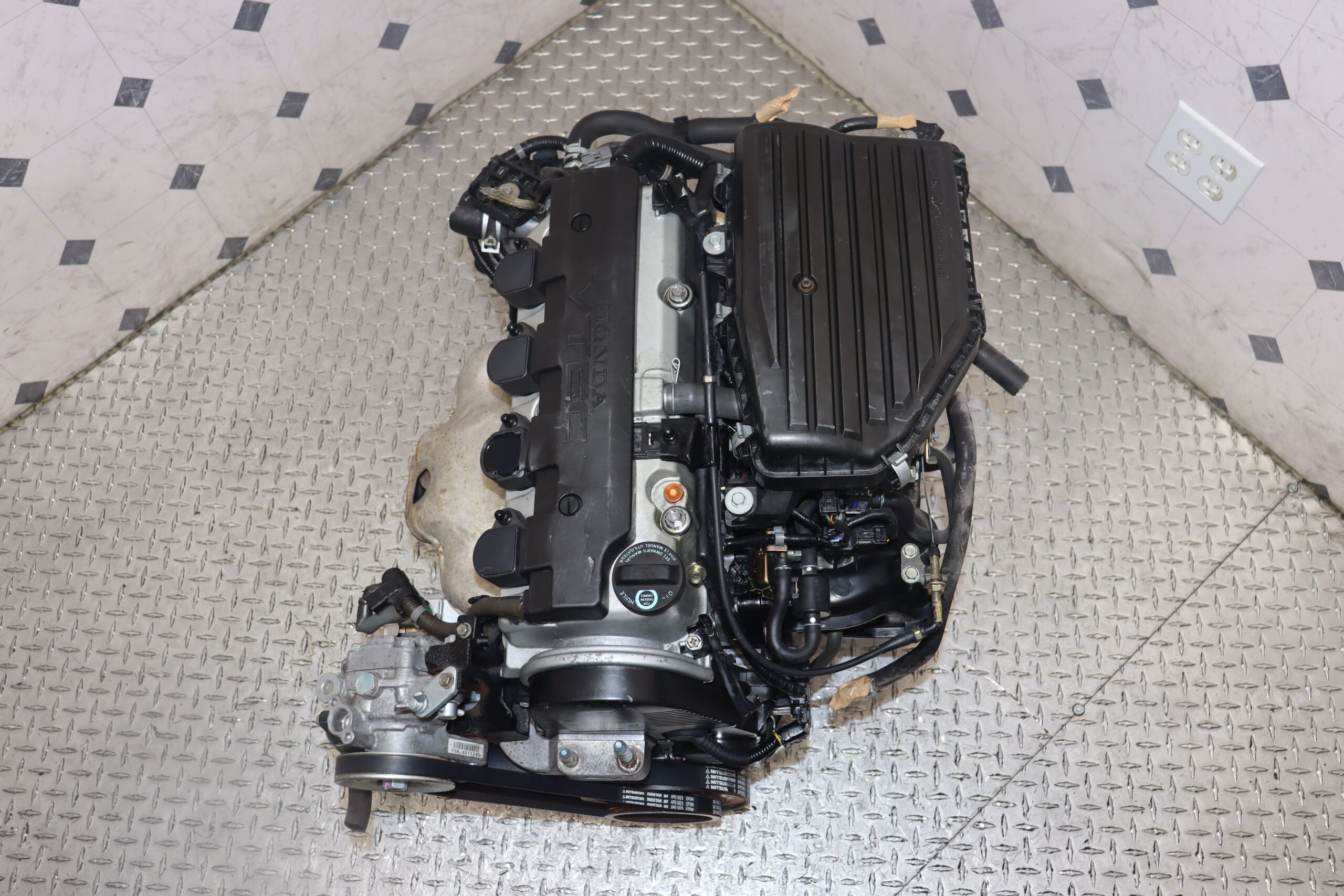

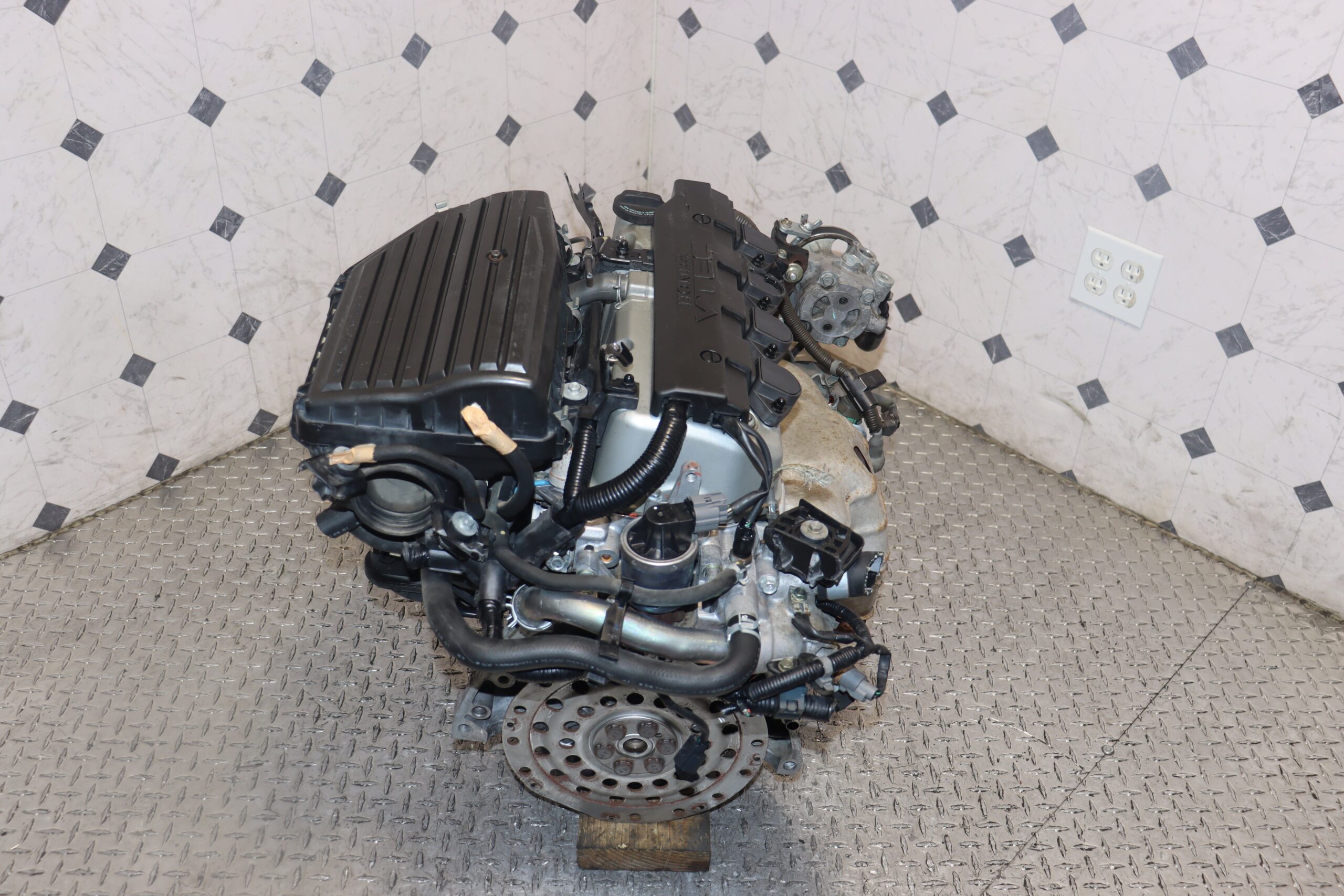

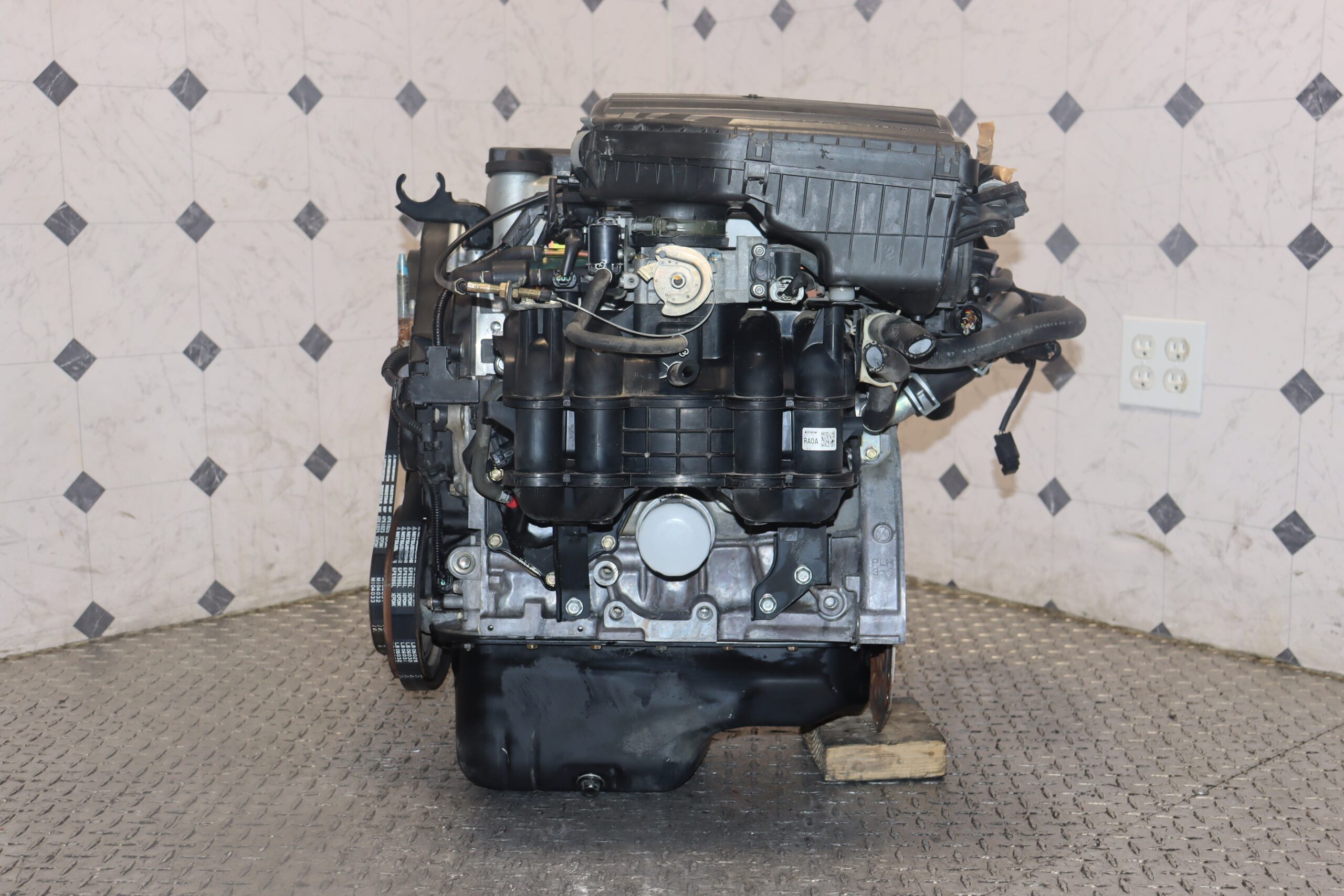

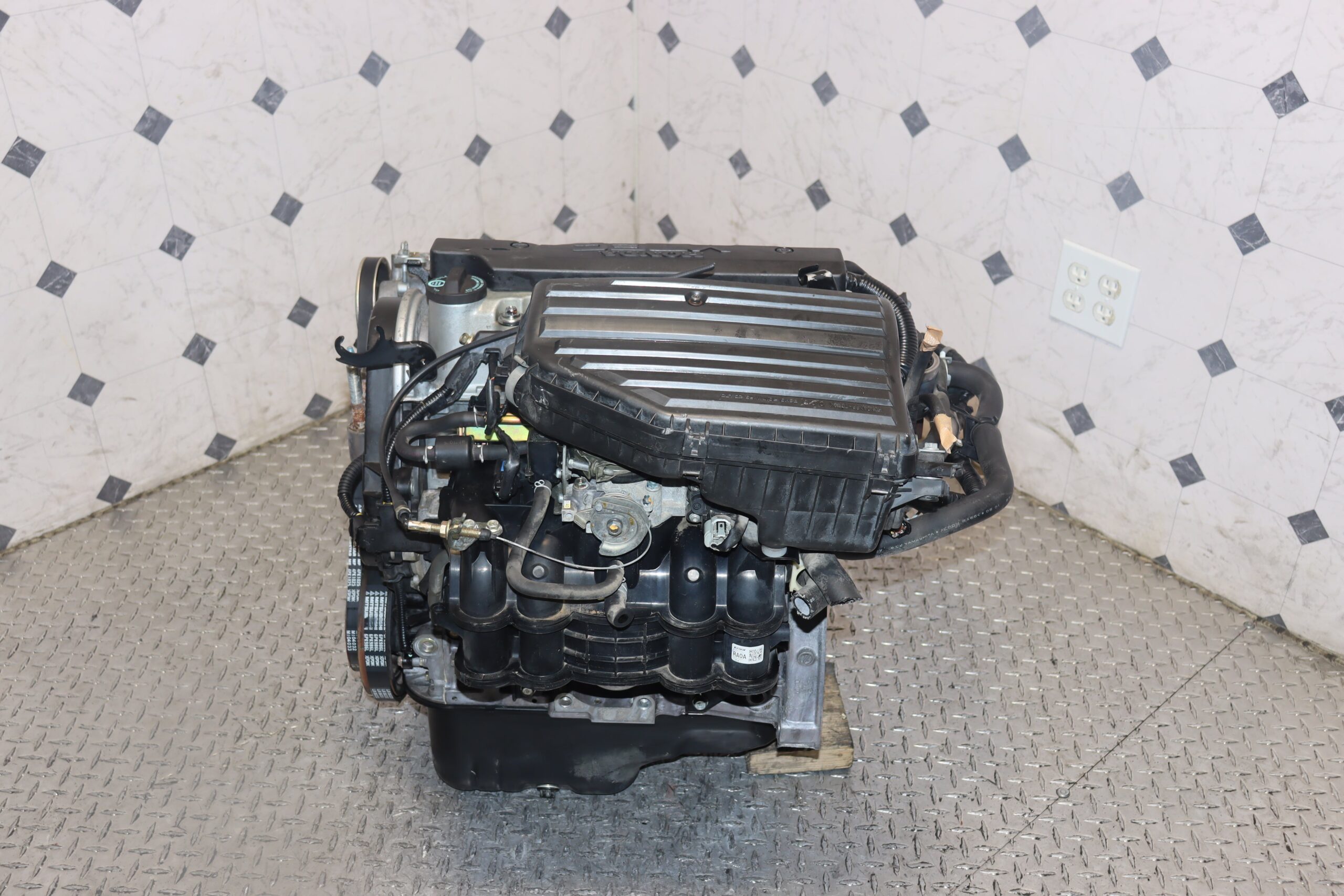

2001 2002 2003 2004 2005 Honda Civic 1.7L SOHC VTEC Engine JDM D17A OEM

Description

Vehicle Specifications

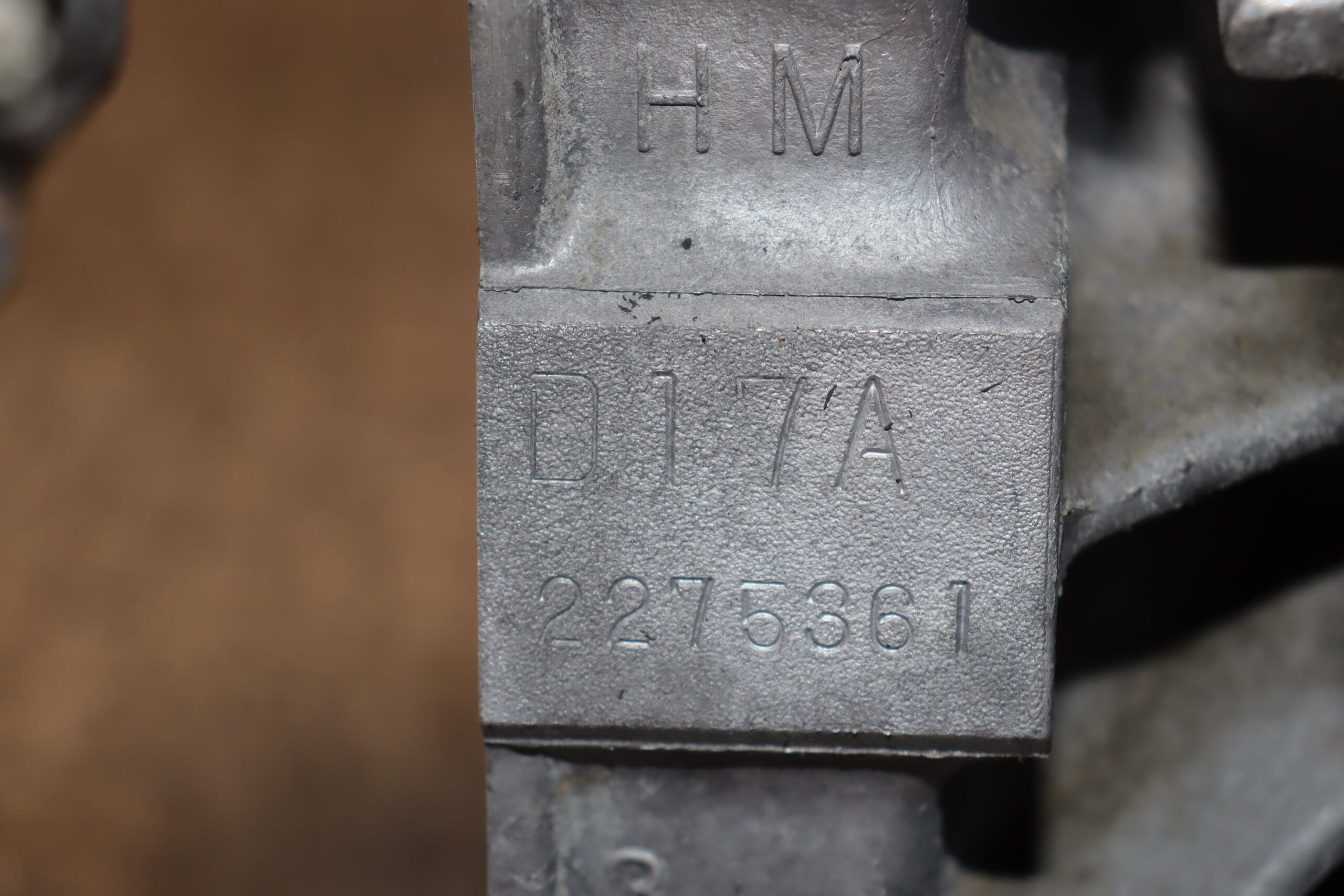

• Engine Code: D17A (VTEC)

• Displacement: 1.7 Liter (1,668cc)

• Configuration: Inline 4-Cylinder

• Valvetrain: SOHC 16-Valve VTEC

• Timing Drive: Timing Belt Driven (Interference Engine)

Vehicle Fitments

• 2001–2005 Honda Civic EX (USDM Direct Long Block Replacement for D17A2)

• Installation Note: This engine can be swapped into DX/LX (Non-VTEC) models, but requires VTEC wiring and a compatible ECU.

Included Parts

• Complete Engine Long Block (Block and VTEC Cylinder Head)

• VTEC Solenoid Assembly

• Intake Manifold & Throttle Body

• Fuel Rails & Fuel Injectors

• Coil Packs & Spark Plugs

• Alternator, AC Compressor, & Power Steering Pump

• Water Pump & All Internal Timing Components

Installation & Notes

• USDM Swap: To ensure 100% plug-and-play compatibility with your vehicle’s ECU and emissions, you must transfer all your original USDM accessories to the JDM unit.

• Crank Sprocket Warning: JDM D17A engines often feature a different crankshaft timing gear tooth pattern. You must swap your original USDM Crankshaft Sprocket and Camshaft Gear onto the JDM engine to prevent synchronization codes (P0335/P0340) and starting issues.

• VTEC Solenoid: If the JDM VTEC solenoid electrical connector does not match your harness, simply swap your original USDM VTEC solenoid onto the JDM head.

• Maintenance: We highly recommend a new timing belt kit, water pump, and rear main seal. It is also critical to use a new thermostat and ensure the cooling system is properly bled, as the D17 series is sensitive to overheating.
